Shape Creation#

This tutorial walks you through the process of creating a new shape for use as a target in the morphing process.

Create a class for the shape#

All Data Morph shapes are defined as classes inside the shapes subpackage. In order to register a new target shape for the CLI, you will need to fork and clone the Data Morph repository, and then add a class defining your shape.

Select the appropriate base class#

Data Morph uses a hierarchy of shapes that all descend from an abstract base class (Shape), which defines the basics of how a shape needs to behave (i.e., it must have a distance() method and a plot() method).

UML diagram showing the hierarchy of the shape classes.

Any new shape must inherit from Shape or one of its child classes:

  • If your shape is composed of lines, inherit from LineCollection (e.g., Star).

  • If your shape is composed of points, inherit from PointCollection (e.g., Heart).

  • If your shape isn’t composed of lines or points you can inherit directly from Shape (e.g., Circle). Note that in this case you must define both the distance() and plot() methods (this is done for your if you inherit from LineCollection or PointCollection).

Define the scale and placement of the shape based on the dataset#

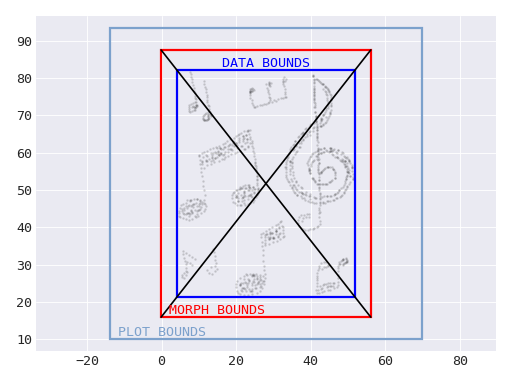

Each shape will be initialized with a Dataset instance. Use the dataset to determine where in the xy-plane the shape should be placed and also to scale it to the data. If you take a look at the existing shapes, you will see that they use various bits of information from the dataset, such as the automatically-calculated bounds (e.g., Dataset.data_bounds, which form the bounding box of the starting data, and Dataset.morph_bounds, which define the limits of where the algorithm can move the points) or percentiles using the data itself (see Dataset.df). For example, the XLines shape inherits from LineCollection and uses the morph bounds (Dataset.morph_bounds) to calculate its position and scale:

class XLines(LineCollection):

    name = 'x'

    def __init__(self, dataset: Dataset) -> None:
        xmin, xmax = dataset.morph_bounds.x_bounds
        ymin, ymax = dataset.morph_bounds.y_bounds

        super().__init__([[xmin, ymin], [xmax, ymax]], [[xmin, ymax], [xmax, ymin]])

Since we inherit from LineCollection here, we don’t need to define the distance() and plot() methods (unless we want to override them). We do set the name attribute here since the default will result in a value of xlines and x makes more sense for use in the documentation (see ShapeFactory).

Register the shape#

For the data-morph CLI to find your shape, you need to register it with the ShapeFactory:

  1. Add your shape class to the appropriate module inside the src/data_morph/shapes/ directory. Note that these correspond to the type of shape (e.g., use src/data_morph/shapes/points/<your_shape>.py for a new shape inheriting from PointCollection).

  2. Add your shape to __all__ in that module’s __init__.py (e.g., use src/data_morph/shapes/points/__init__.py for a new shape inheriting from PointCollection).

  3. Add an entry to the ShapeFactory._SHAPE_CLASSES tuple in src/data_morph/shapes/factory.py, preserving alphabetical order.

Test out the shape#

Defining how your shape should be generated from the input dataset will require a few iterations. Be sure to test out your shape on different datasets:

$ data-morph --start-shape panda music soccer --target-shape <your shape>

Some shapes will work better on certain datasets, and that’s fine. However, if your shape only works well on one of the built-in datasets (see the DataLoader), then you need to keep tweaking your implementation.

(Optional) Contribute the shape#

If you think that your shape would be a good addition to Data Morph, create an issue in the Data Morph repository proposing its inclusion. Be sure to consult the contributing guidelines before doing so.

If and only if you are given the go ahead:

  1. Prepare a docstring for your shape following what the other shapes have. Be sure to change the plotting code in the docstring to use your shape.

  2. Add test cases for your shape to the tests/shapes/ directory.

  3. Submit your pull request.
