Circle

class data_morph.shapes.circles.Circle(dataset: Dataset, r: Number = None)

Bases: Shape

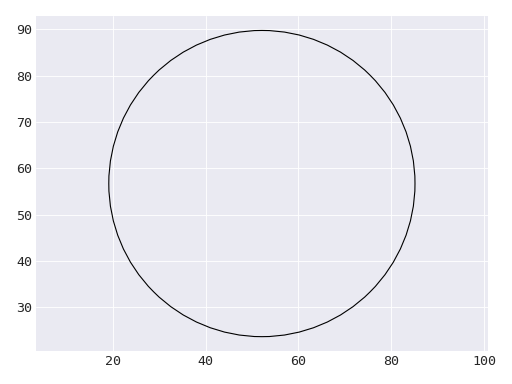

Class representing a hollow circle.

This shape is generated using the panda dataset.

Parameters:

• dataset (Dataset) – The starting dataset to morph into other shapes.

• r (numbers.Number, optional) – The radius of the circle.

cx: Number

The x coordinate of the circle’s center.

Type:

numbers.Number

cy: Number

The y coordinate of the circle’s center.

Type:

numbers.Number

distance(x: Number, y: Number) → float

Calculate the absolute distance between this circle’s edge and a point (x, y).

Parameters:

• x (numbers.Number) – Coordinates of a point in 2D space.

• y (numbers.Number) – Coordinates of a point in 2D space.

Returns:

The absolute distance between this circle’s edge and the point (x, y).

Return type:

float

plot(ax: Axes = None) → Axes

Plot the shape.

Parameters:

ax (matplotlib.axes.Axes, optional) – An optional Axes object to plot on.

Returns:

The Axes object containing the plot.

Return type:

matplotlib.axes.Axes

r: Number

The radius of the circle.

Type:

numbers.Number
