Bullseye

class data_morph.shapes.circles.Bullseye(dataset: Dataset)

Bases: Shape

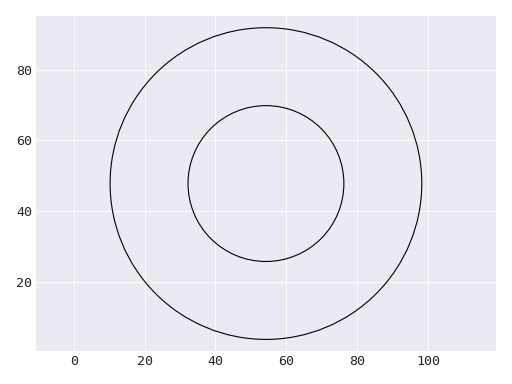

Class representing a bullseye shape comprising two concentric circles.

This shape is generated using the panda dataset.

Parameters:

dataset (Dataset) – The starting dataset to morph into other shapes.

circles: list[data_morph.shapes.circles.Circle]

The inner and outer Circle objects.

Type:

list[Circle]

distance(x: Number, y: Number) → float

Calculate the minimum absolute distance between this bullseye’s inner and outer circles’ edges and a point (x, y).

Parameters:

• x (numbers.Number) – Coordinates of a point in 2D space.

• y (numbers.Number) – Coordinates of a point in 2D space.

Returns:

The minimum absolute distance between this bullseye’s inner and outer circles’ edges and the point (x, y).

Return type:

float

See also

Circle.distance

A bullseye consists of two circles, so we use the minimum distance to one of the circles.

plot(ax: Axes = None) → Axes

Plot the shape.

Parameters:

ax (matplotlib.axes.Axes, optional) – An optional Axes object to plot on.

Returns:

The Axes object containing the plot.

Return type:

matplotlib.axes.Axes
